Remotely control your dumb roller blinds with SONOFF smart switch

Utilize Interlock Mode in SONOFF smart switches to turn your ordinary roller blinds into smart

Whether will most of you agree this is a chore that you pull the roller blinds/blinds up in the morning and pull it down in the evening? Anyway, I’m tired of operating my roller blinds by hand. Smart home technology has worked up to a point where almost most of anything can be interactive – of course it is a piece of cake to make your dumb blinds smart. Maybe now you are already conscious of smart blinds and are eager to upgrade the blinds of your house to smart. However, it is not a wise choice to bring smart blinds home considering the expensive cost and complex fit. In this article, a DIY made-to-measure smart blinds is highly recommended at low-cost instead.

Well, you are possibly about to wonder how to turn your existing regular blinds into smart blinds? Fret not, after scouring the Internet for a smart resolution to make my blinds automatic, finally, I find a few perfect answers and embark on the DIY project to transform it into smart. The guide will introduce how to make your ordinary blinds into smart step by step, then you will be able to do this yourself from scratch, just a SONOFF smart switch or a remote controller and you can effectively build your own smart blinds as a weekend task.

If you really enjoy to try some DIY stuffs whilst you’re wondering about this DIY smart blinds, let’s proceed to this guide!

Note: there are more than one SONOFF smart switches that can automate your blinds, such as SONOFF DUALR2 Smart Switch, 4CHPROR2, 4CHPROR3 Smart Switch, TX 2-/3-gang Smart Wall Switch, RM433 Remote Controller So here every wiring and setting method of the above SONOFF smart switches will be introduced to help realize your DIY smart blinds.

Gathering Stuffs:

SONOFF DUALR2 smart switch

4CHPROR2 4-gang Wi-Fi smart switch with RF control

4CHPROR3 4-gang Wi-Fi smart switch with RF control (coming soon)

TX 2-/3-gang Smart Wall Switch

RM433 remote controller

eWeLink App

A smartphone

Detailed Steps:

Part 1: How to connect SONOFF smart switch with the blinds motor?

Part 2: How to pair with and add the blinds to your smartphone?

Part 3: How to set the blinds to achieve automation through the day?

Works with SONOFF DUALR2 to make your blinds smart:

Part 1: How to connect DUALR2 with the blinds motor?

1). Search and download eWeLink APP in APP Store for iOS version and Google Play for Android version.

2). Register an eWeLink account.

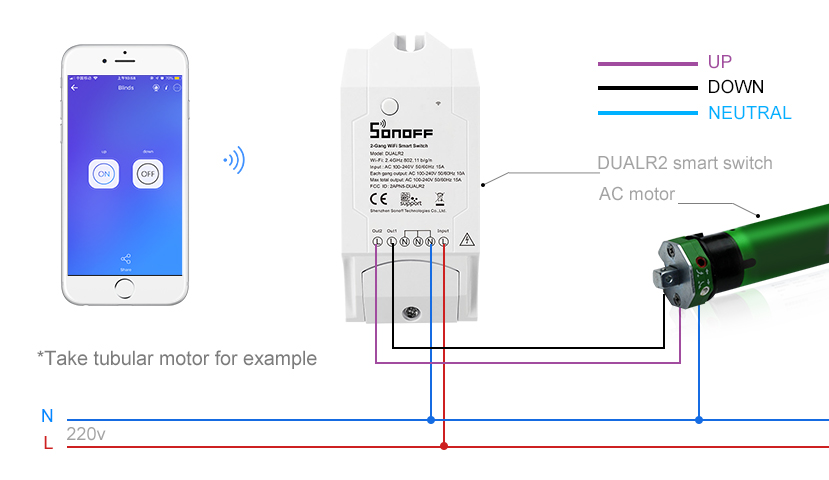

3). Connect your blinds motor with DUALR2 according to the following wiring instruction:

Part 2: How to pair with and add the blinds to your smartphone?

1). Power on DUALR2.

2). Press the pairing button for 7s until the green LED flashes 3 times and on repeatedly.

3). Select quick pairing mode to pair your smartphone and DUALR2. Enter your Wi-Fi SSID and password. The Wi-Fi LED keeps on indicates that your blinds motor has paired with DUALR2 successfully.

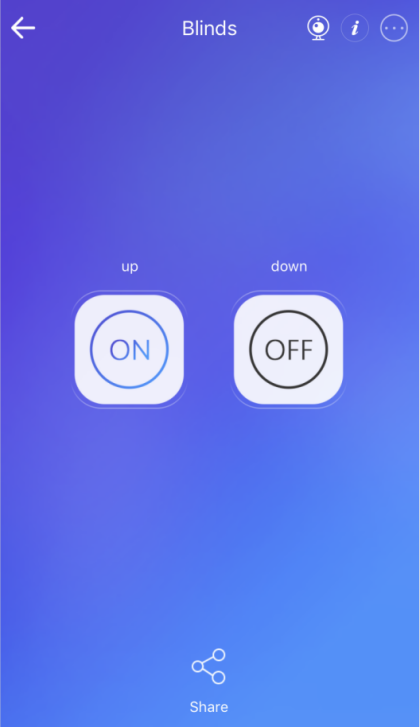

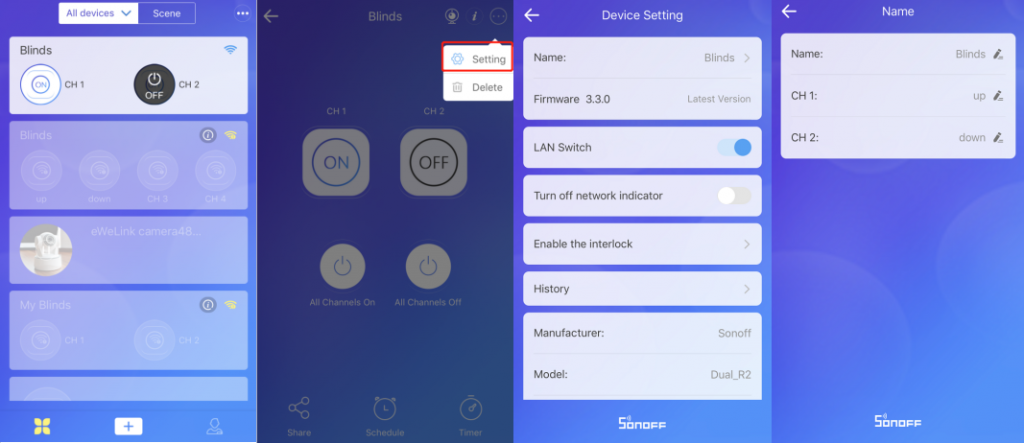

4). Name your blinds motor. Also name each channel, for example: channel 1 for “up” and channel 2 for “down”.

5). Add blinds successfully.

Part 3: How to set the blinds to achieve automation through the day?

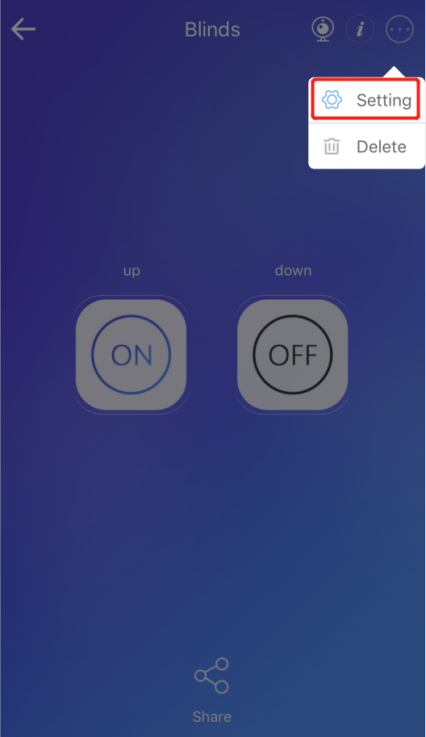

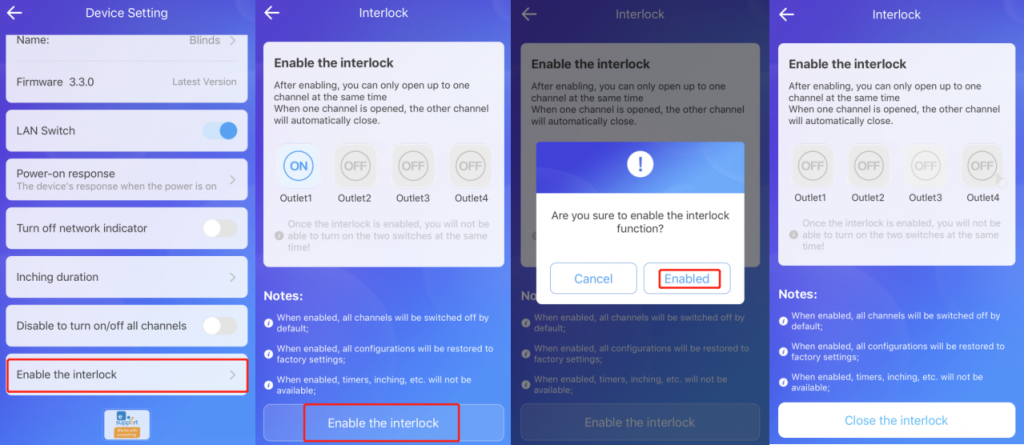

1). Go to the blinds control page and tap “setting” on the upper right corner.

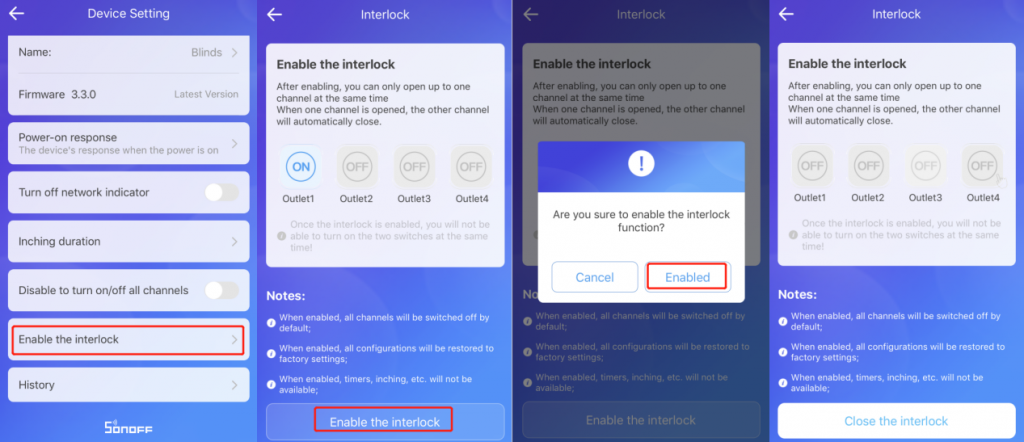

2). Tap “Enable the interlock” mode and tap “Enabled”.

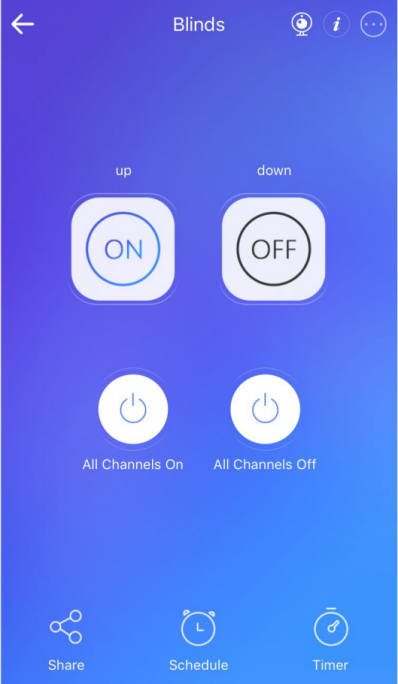

3). Done. Tap“up” to open your blinds and “down” to close, or tap “up/down” to stop it at the desired position.

Works with SONOFF 4CHPROR2 (or RM433 remote controller) to make your blinds smart:

Part 1: How to connect 4CHPROR2 with the blinds motor?

1). Download eWeLink APP and register your eWeLink account, please refer to DUALR2.

2). Connect your blinds motor with 4CHPROR2 according to the following wiring instruction:

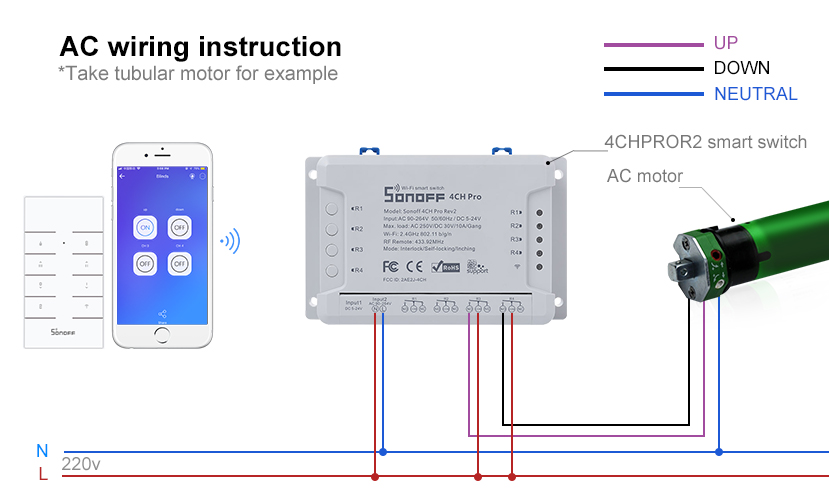

AC wiring instruction :

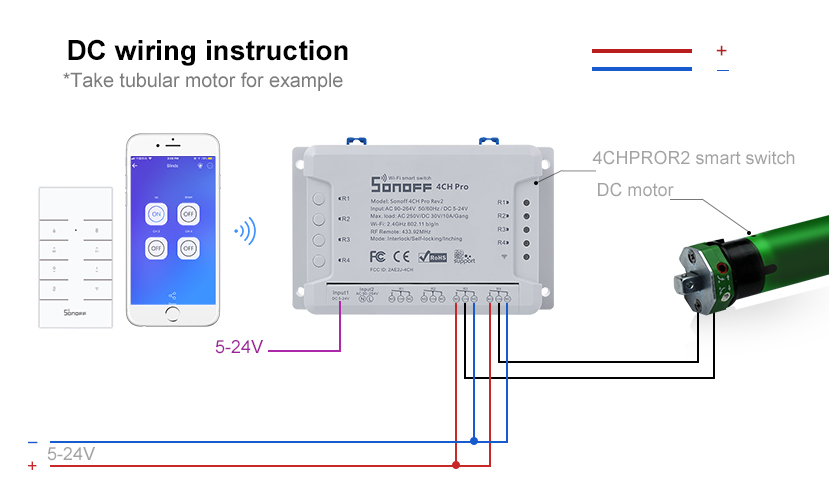

DC wiring instruction:

3). Move the dip switch on the S6 from “1”to “0” position.

Part 2: How to pair with and add the blinds to your eWeLink APP?

1). Power on 4CHPROR2.

2). Long press any button for 5s on 4CHPROR2 until the Wi-Fi LED quickly flashes 3 times and on repeatedly.

3). Select quick pairing mode to pair your blinds motor and 4CHPROR2. Enter your Wi-Fi SSID and password. The Wi-Fi LED keeps on indicates that your blinds motor has paired with 4CHPROR2 successfully.

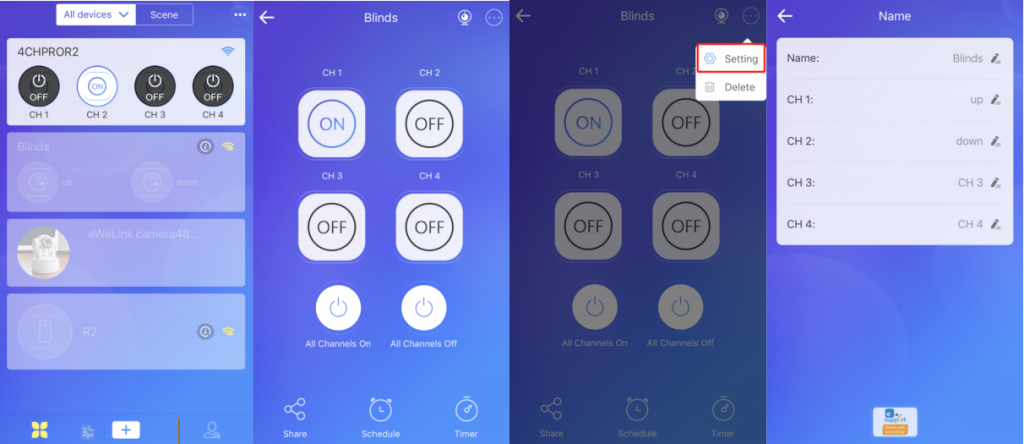

4). Name your blinds motor. Also name each channel, for example: channel 1 for“up” and channel 2 for“down”.

5). Add blinds successfully.

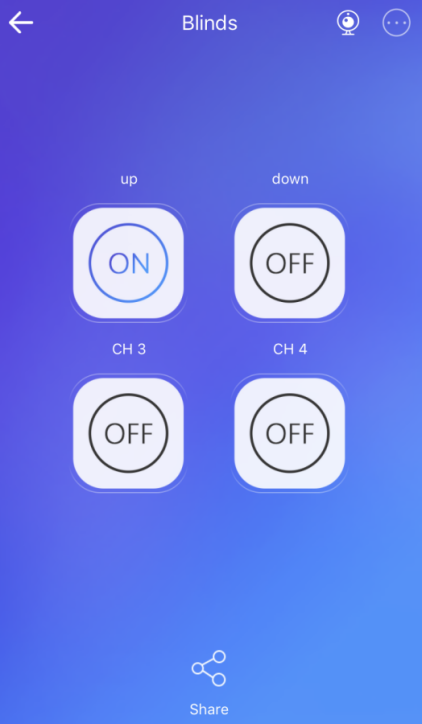

6). Done. Tap“up”to open your blinds and “down” to close, or tap “up/down” to stop it at the desired position.

How to control your blinds with RM433 remote controller when you use 4CHPROR2?

1). Pair the RM433 with the 4CHPROR2.

RM433 pairing method:

Quickly press the button that you want to pair on 4CHPROR2 twice, then press one of buttons on RM433. The green LED will flashes 4 times indicates you have paired with the 4CHPROR2 successfully. Note: one channel supports to learn one remote controller button.

2). Press the corresponding button on RM433 to pull up or down, or stop it at the desired position.

RM433 clearing method:

Long press S5 on 4CHPROR2 until 4 LEDs keep on and turn off, then clearing code is successful.

Works with SONOFF 4CHPROR3 (or RM433 remote controller) to make your blinds smart:

Part 1: How to connect SONOFF 4CHPROR3 smart switch with the blinds motor?

1). Download eWeLink APP and register your eWeLink account, please refer to DUALR2.

2). Connect your blinds motor and 4CHPROR3 according to the following wiring instruction:

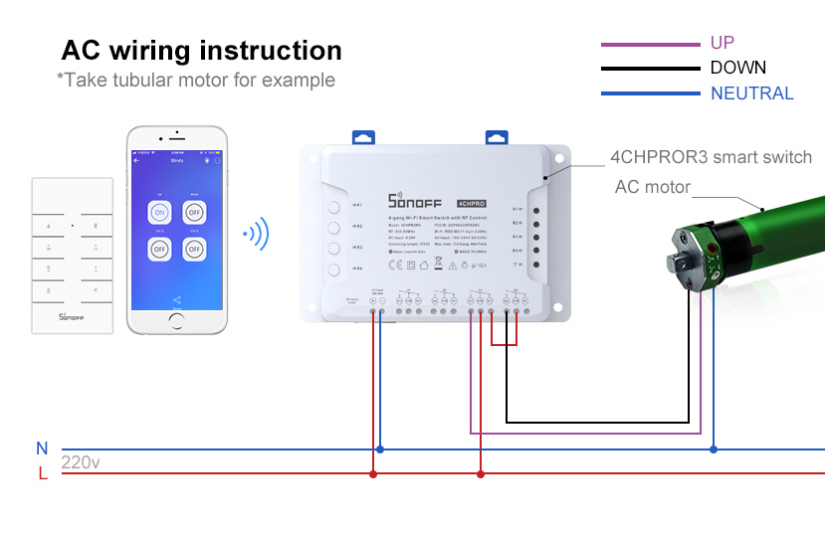

AC wiring instruction 1:

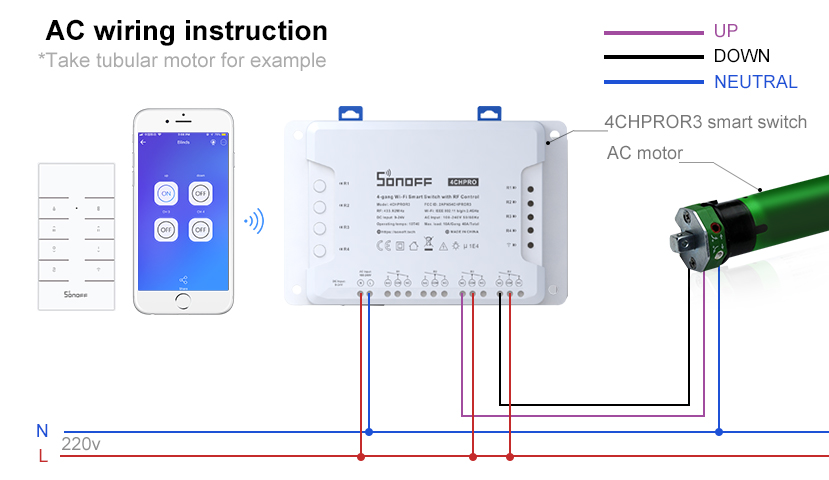

AC wiring instruction 2:

Tips for AC wiring instruction 2:

1.No matter which wiring method for 4CHPROR3, you don’t need to move any dip switch on the hardware. Unlike 4CHPROR2, 4CHPROR3 allows you to simply set the interlock mode on the eWeLink APP.

2.The advantage of the second wiring than the first as follows:

*No need to enable interlock mode.

*You can enable the inching mode to make your blinds up or down for 0.5-3600s (set the time as a multiple of 0.5) and it will stop a certain position.

*Another two channels are available for connecting your lights or other devices.

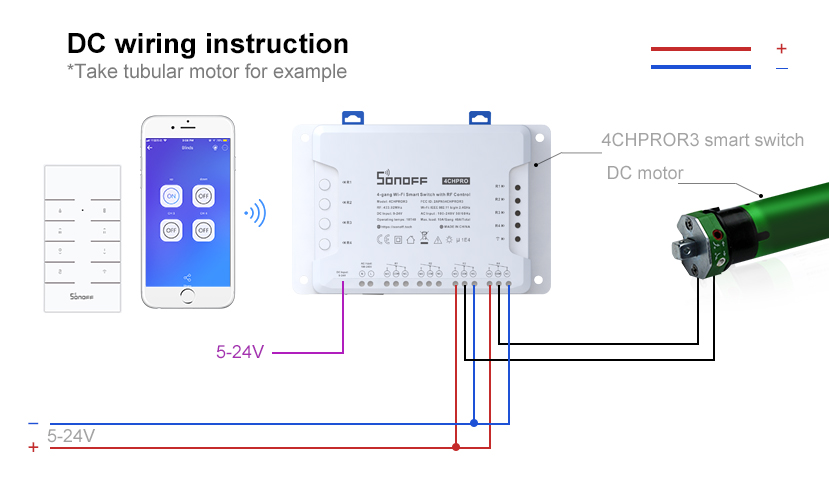

DC wiring instruction:

Part 2: How to pair with and add the blinds to your eWeLink APP?

1). Power on SONOFF 4CHPROR3. It will default to enter the quick pairing mode during the first use. Or long press any button for 5s on 4CHPROR3 until the Wi-Fi LED changes in a cycle of two short and one long flash.

2). Select quick pairing mode to pair your blinds motor and 4CHPROR3. Enter your Wi-Fi SSID and password. The Wi-Fi LED keeps on indicates that your blinds motor has paired with 4CHPROR3 successfully.

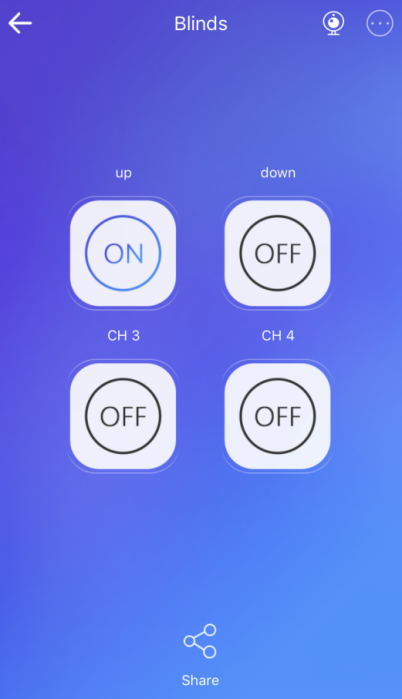

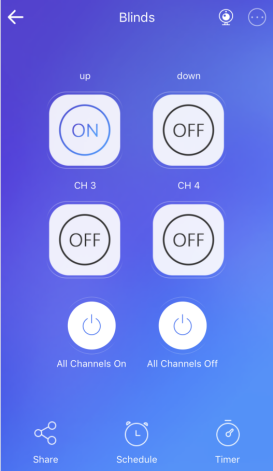

3). Name your blinds motor. Also name each channel, for example: channel 1 for“up”and channel 2 for“down”.

4). Add the blinds successfully.

Part 3: How to set the blinds to achieve automation through the day?

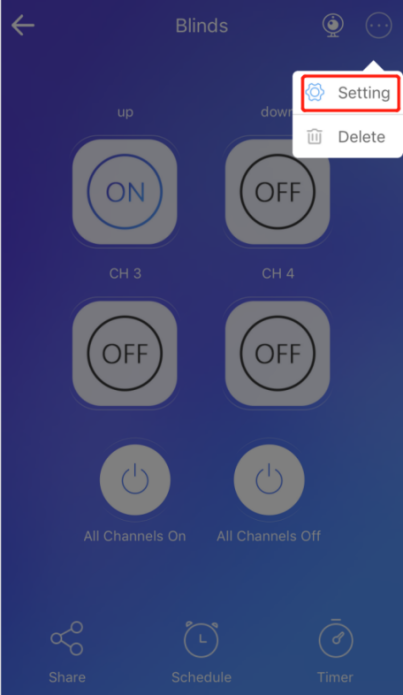

1). Go to the blinds control page and tap“setting”on the upper right corner.

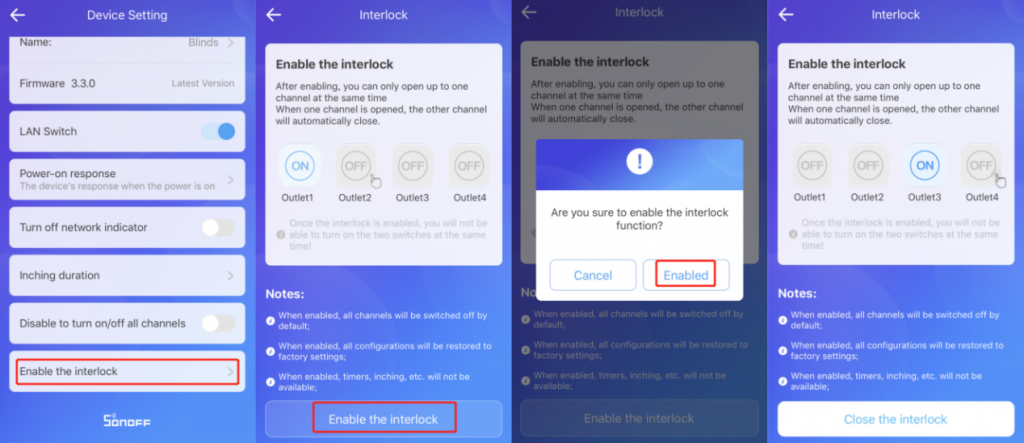

2). Tap “Enable the interlock” mode >>“Enabled”.

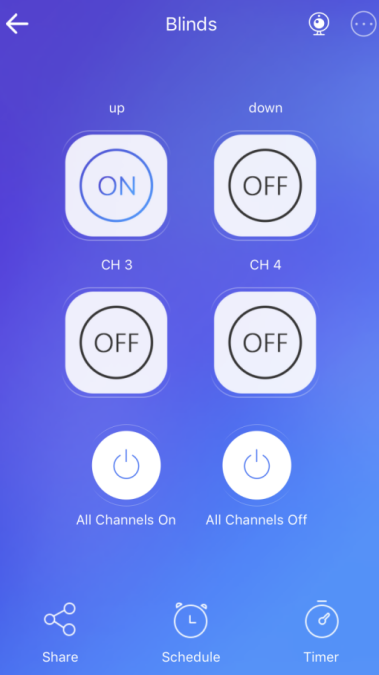

3). Done. Tap“up”to open your blinds and “down” to close, or tap “up/down” to stop it at the desired position.

How to control your blinds with RM433 remote controller when you use 4CHPROR3?

1). Pair the RM433 with the 4CHPROR3.

RM433 pairing method:

Long press the channel button that you want to pair for 3s on 4CHPROR3 until the red Wi-Fi LED flashes quickly once and release, then short press the remote controller button that your want to pair and the red Wi-Fi LED flashes quickly once again indicates you have paired the button successfully. Other remote controller buttons can be paired according to this method.

2). Press the corresponding button on RM433 to pull up or down, or stop it at the desired position.

RM433 clearing method:

Long press the button that you want to clear for 5s on 4CHPROR3 until the red Wi-Fi LED flashes quickly twice and release, then short press the remote controller button that your want to clear and the red Wi-Fi LED flashes quickly once indicates you have cleared the button successfully. Other remote buttons can be cleared through this method.

Works with SONOFF TX 2/3-gang smart wall switch or (RM433 remote controller) to make your blinds smart:

Part 1: How to connect TX 2/3-gang with the blinds motor?

1). Download eWeLink APP and register your eWeLink account, please refer to the DUALR2.

2). Connect your blinds motor and TX 2-/3-gang according to the following wiring instruction:

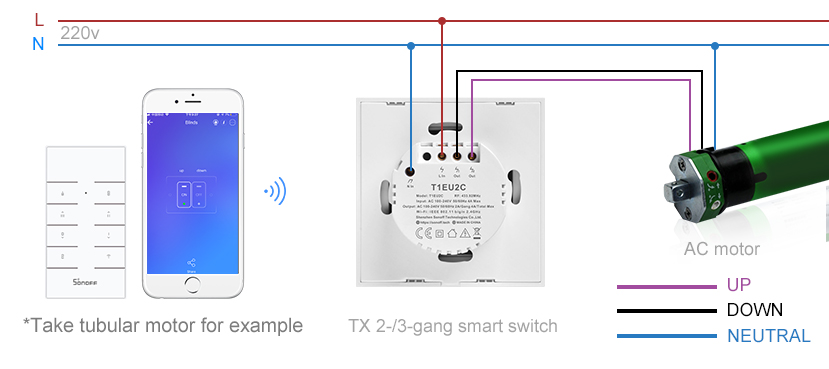

Wiring instruction:

Part 2: How to pair with and add the blinds to your eWeLink APP?

1). Power on TX 2-/3-gang, it will default to enter the quick pairing mode during the first use. Or you can long press any button for 5s on TX until the Wi-Fi LED changes in a cycle of two short and one long flash.

2). Select quick pairing mode to pair your blinds motor and TX 2-/3-gang. Enter your Wi-Fi SSID and password. The Wi-Fi LED keeps on indicates that your blinds motor has paired with TX 2-/3-gang successfully.

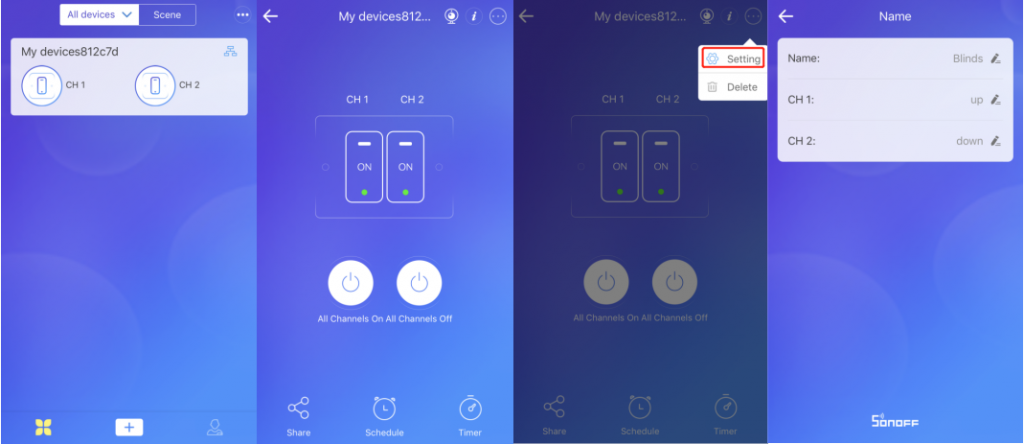

3). Name your blinds motor. Also name each channel, for example: channel 1 for“up” and channel 2 for“down”.

4). Add the blinds successfully.

Part 3: How to set the blinds to achieve automation through the day?

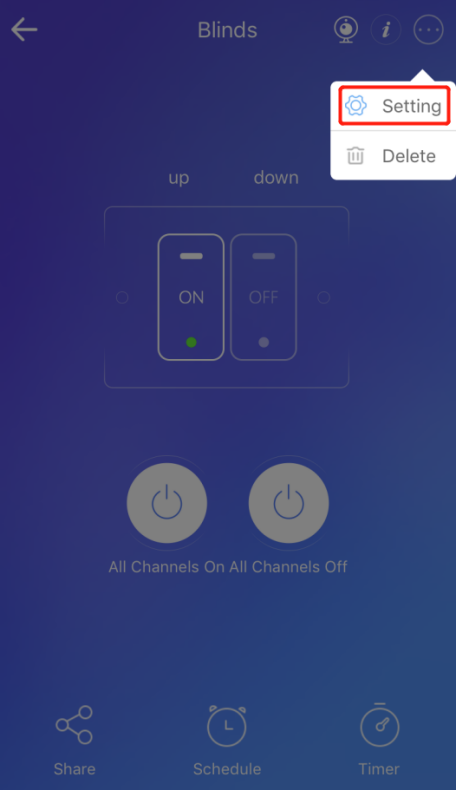

1). Go to the blinds control page and tap“setting”on the upper right corner.

2). Tap “Enable the interlock” mode >>“Enabled”.

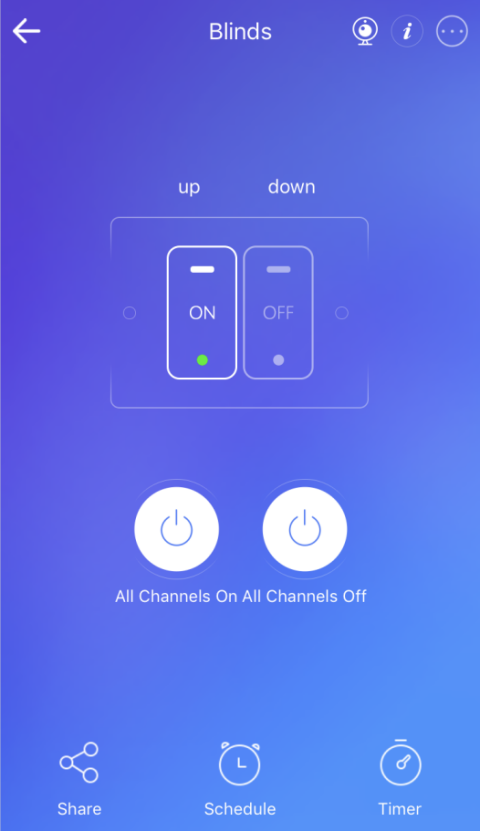

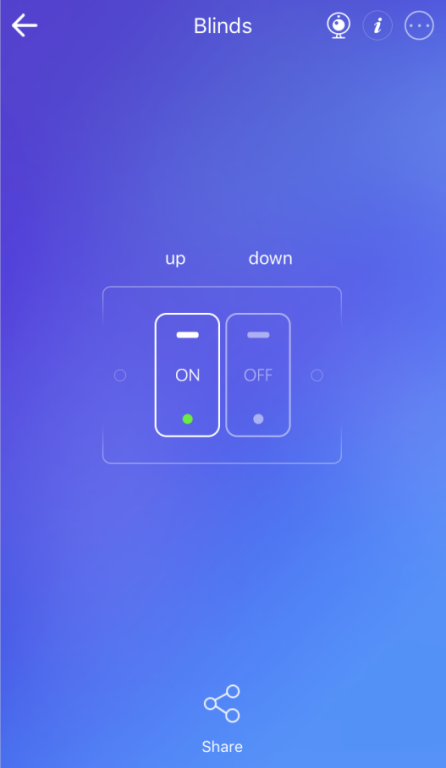

3). Done. Tap“up”to open your blinds and “down” to close, or tap “up/down” to stop it at the desired position.

How to control your blinds with RM433 when you use TX 2-/3-gang?

1). Pair RM433 with the TX 2-/3-gang.

RM433 pairing method:

Long press the touch button that you want to pair until you hear a “beep” sound and release, then press the corresponding button on RM433, and you will hear a “beep” sound again after successfully pairing. Other buttons can be paired through this method.

2). Press the corresponding button on RM433 to pull up or down, or stop it at the desired position.

RM433 clearing method:

Long press the touch button that you want to clear until you hear two“beep”sounds and release, then press the corresponding button on RM433, and you will hear a“beep”sound again after successfully clearing. Other buttons can be cleared through this method.

Conclusion:

In this article, there are a few complete DIY solutions to guide you to have your own smart blinds step by step without changing the whole blinds setup – SONOFF smart switches, including – DUALR2, 4CHPROR2, 4CHPROR3 and TX 2-gang/3-gang and RM433 Remote Controller. Overall, whatever form of SONOFF smart switch above that you go for your smart blinds, the detailed guide gives you a clear wiring and installation method that makes you easily automate your dumb roller blinds/blinds by yourself.
