PIR2 PIR Sensor

Detect human movement and any presence and send an alarm message to your phone. Keep an eye on your house. Works nicely with SONOFF 433 RF Bridge

Infrared Signal

Detects any movement both day and night thanks to passive infrared technology

Message Alert

Your phone will receive an alarm message when it detects any movement within the field of vision

Distance Detecting

The adjustable sensitivity allows for a motion detection range up to 12m

Angle Monitoring

The wider 110° detecting angle allows for a wider field of view

Power Saving

Enter the power save mode, which provides you a longer working time up to 2 years

How to Install

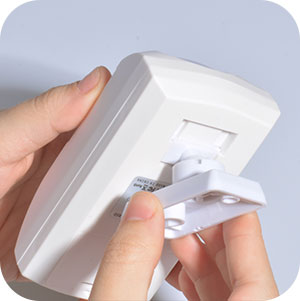

Install the supporting base on the sensor

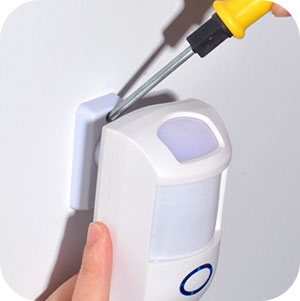

Mount the base on the place you desired with screws

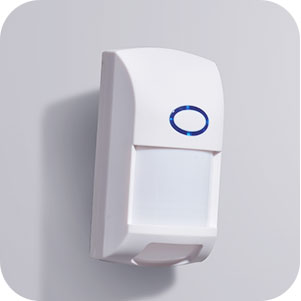

Well done

Specification

433.92MHz Transmit distance: 150m (open)

Voltage: 3V (2*AAA)

Alarm current: ≤10mA

Standby current: ≤9μA

Wireless frequency: 433.92MHz

Wireless Transmit Code: 1527Mhz (default)

Detection distance: 12m@ 25℃

Detection angle: 110 degrees

Maximum coverage area: 12m*12m

Alarm indicator light: on for 3 seconds

Working environment: indoor

Tamper switch: normally closed

Anti-white light intensity: 10000Lux

Packing size: 165*65*50mm

Product Size: 120*62*46mm

Battery type: 2*AAA (Note: this model doesn’t come with battery)

Weight: 120g
