SONOFF 4CHR2/PROR2

4CHR2/PROR2 Wi-Fi Smart Switch

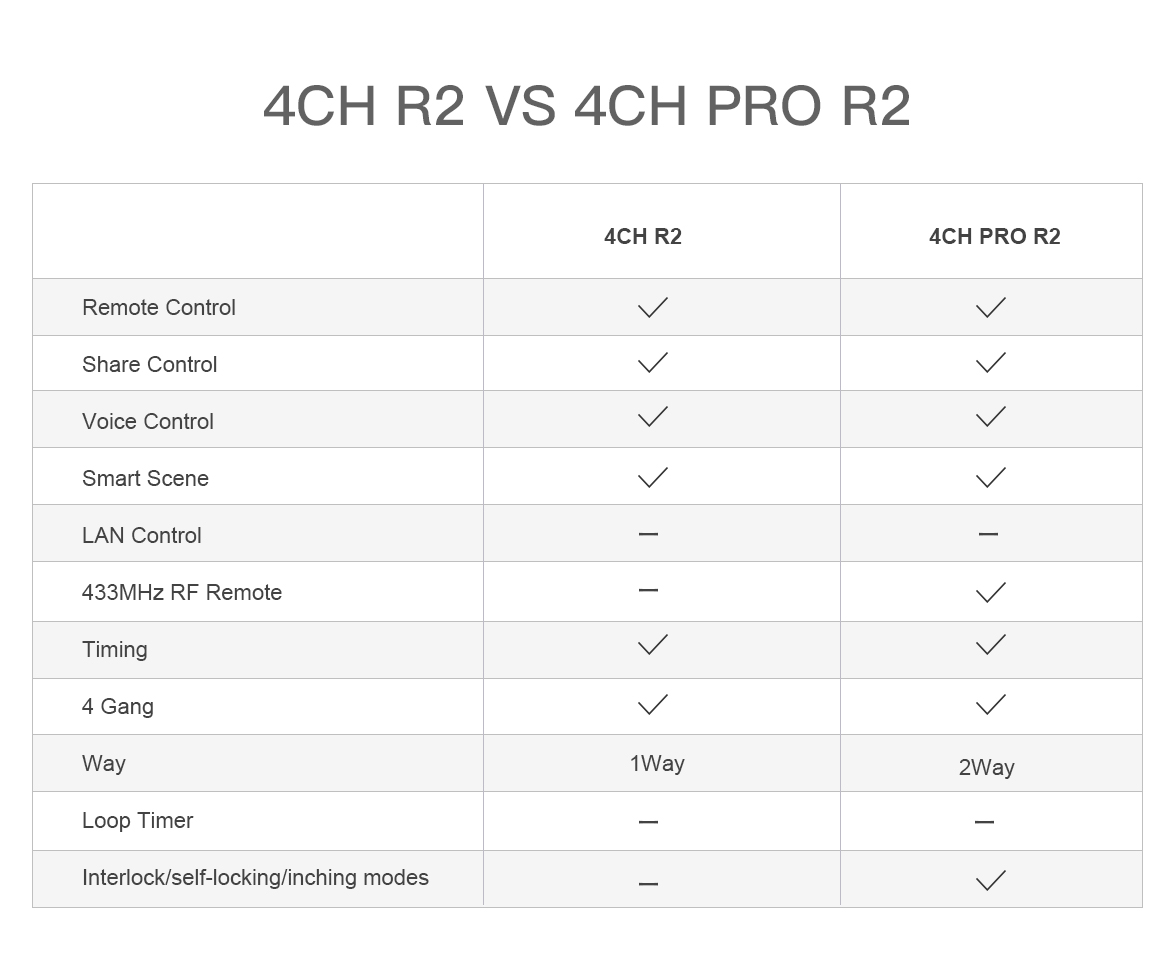

Both are made to control up to 4 different devices remotely. Compared with 4CHR2, there are extra features including self-inching, interlock, inching mode and RM433 control for 4CHPROR2

Take Control, Independently & Remotely

Have complete control of your appliances with the eWeLink app for your phone or tablet. Also each channel can be turned on/off individually. One switch for four devices, which means you will save more money on switches

ico

Speak to It

Works with Amazon Alexa, Google Assistant to have them complete your commands. Simply say: “ Alexa, turn on the light”, and it will carry out


“Hey, Alexa, turn on the light.”
“Okay”

3 Work Modes You Need

There are interlock, self-locking and inching mode inside, giving you more methods to turn on/off different devices. You can set some devices in inching mode, while the others in self-locking mode

  • ico

    Self-locking

    turn on/off 4 connected

    devices instantly and separately

  • ico

    Interlock

    turn on one device every time, and turn

    off other devices at the same time

  • ico

    Inching

    turn on connected devices for 1-16s then

    automatically turn off

    4CH_04_01.jpg5

Make A Slew of Scenes Happen

If you have owned smart appliances, the IFTTT function will bring you many advantages for smarter and more convenient control. When set an action to happen,the IFTTT service automatically triggers another separate action


Run at A Pre-set Time

Allow you to set a daily, weekly or monthly time limit for appliances and the switch will automatically turn on or off them at a particular time

ico
17:00-17:30
ico
20:00-20:15
ico
22:00-03:15
ico
23:00-23:30
  • ico
    Sync Status
  • ico
    Power-on State
  • ico
    RF Control

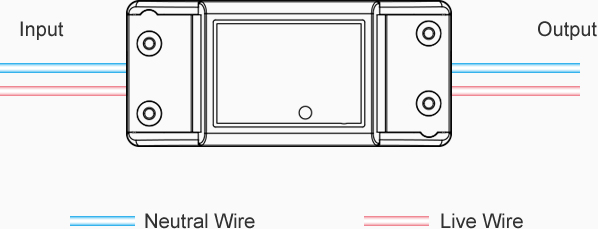

Wiring Diagram

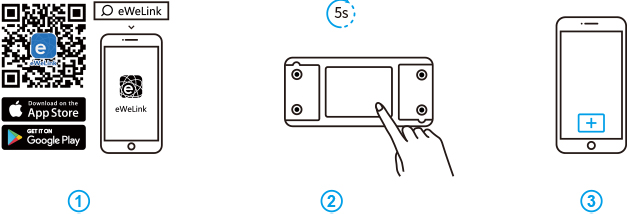

Quick Start


Specification

Voltage range: 90-250v AC(50/60Hz)

Max current: 10A

Max Wattage: 2200W

Dimensions: 88*38*23mm (L*W*H)

Enclosure Material: Fire-retardant ABS V0

Humidity: 5%-90%RH, Non-condensing

Wireless Standard: 802.11 b/g/n

Security Mechanism: WPA-PSK/WPA2-PSK

Operating Temperature: 0ºC-40ºC(32°F-104°F)

Color: White

Gang: 1
